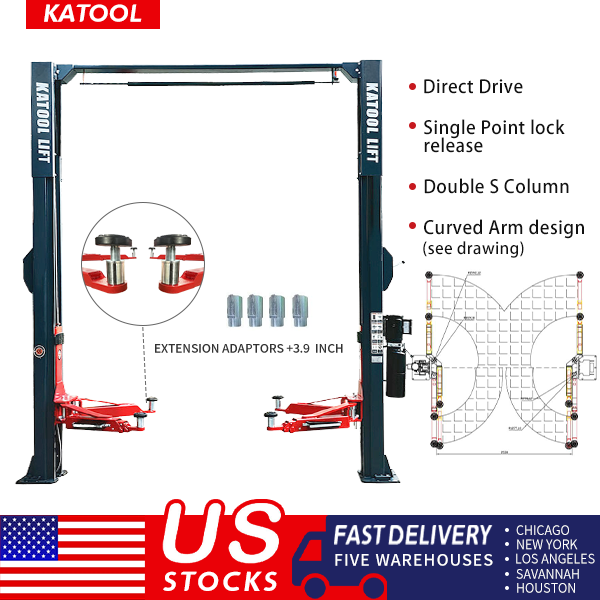

Katool KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release
Katool KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release
Regular price
$2,999.00
Regular price
Sale price
$2,999.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

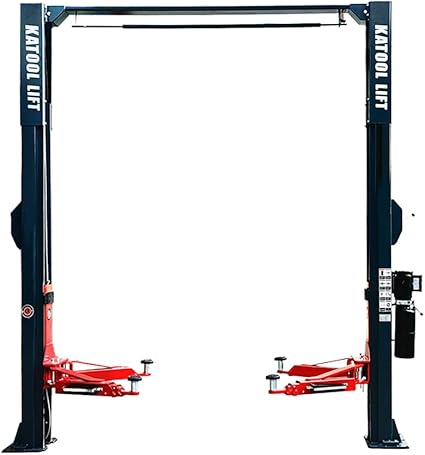

Katool KT-AS110D 11000lbs Two Post Asymmetrical Vehicle Lift
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

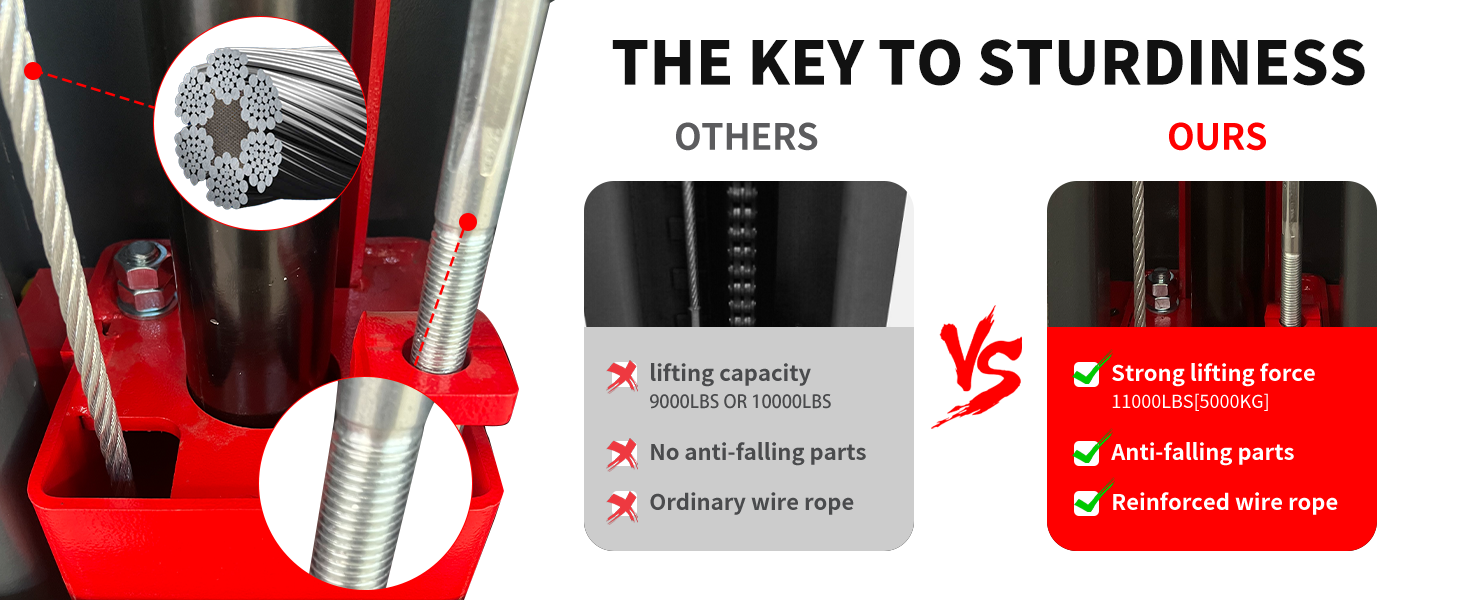

- 11000lbs (4990KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

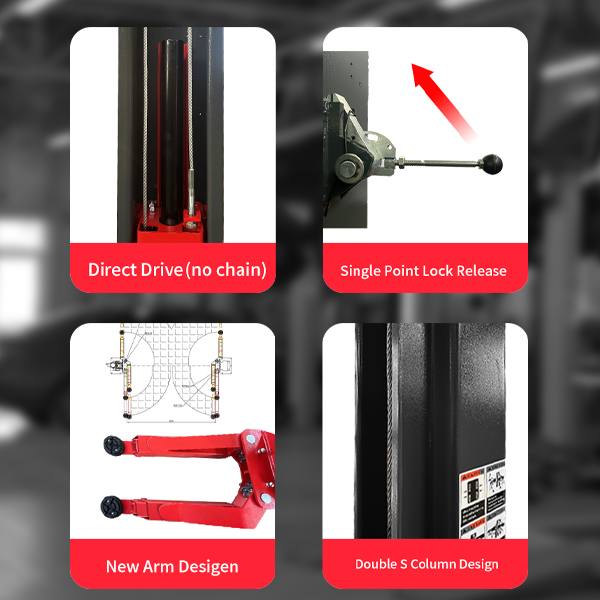

- Single Point Lock Release

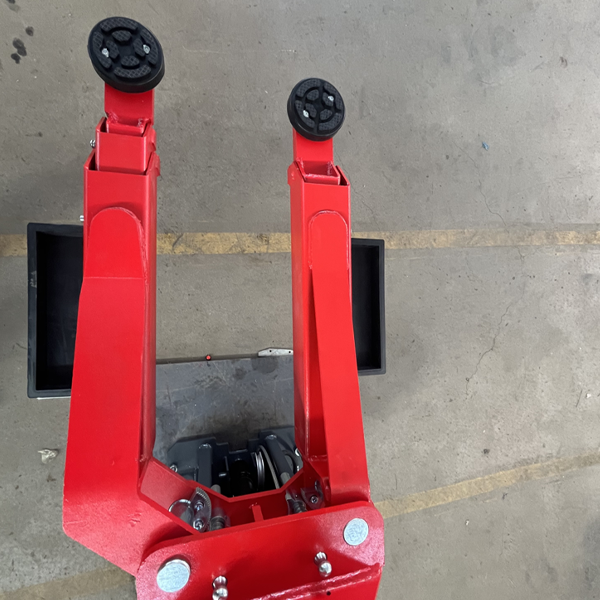

- Asymmetric arms

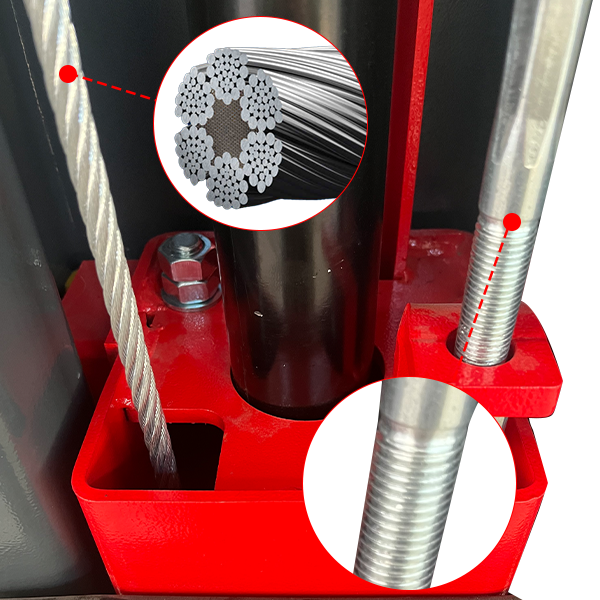

- Direct Drive Cylinders
- Rubber pad door opening protection
- Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
- Overhead safety shutoff bar
- Feet-protection safety guardrails with toolbox
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)
Lifting Capacity | 11000 lbs. (4990KG ) |
Max. Lifting Height | 70.75" / 1800mm |
Min. Height | 3.74" / 95mm |
Height Overall | 141.25" / 3587mm |
Width Overall | 134.65" / 3420mm |
Outside Columns | 120.4" / 3058mm |
Inside Columns | 109.37" / 2778mm |
Drive Thru Clearance | 99.61" / 2530mm |
Motor | 220VAC/60HZ/1PH |
Net Weight | 1323lbs / 600KG |
