Katool
Katool X80-Pneumatic Mid Rise Scissor Lift
Katool X80-Pneumatic Mid Rise Scissor Lift
Regular price
$2,799.00
Regular price
Sale price
$2,799.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

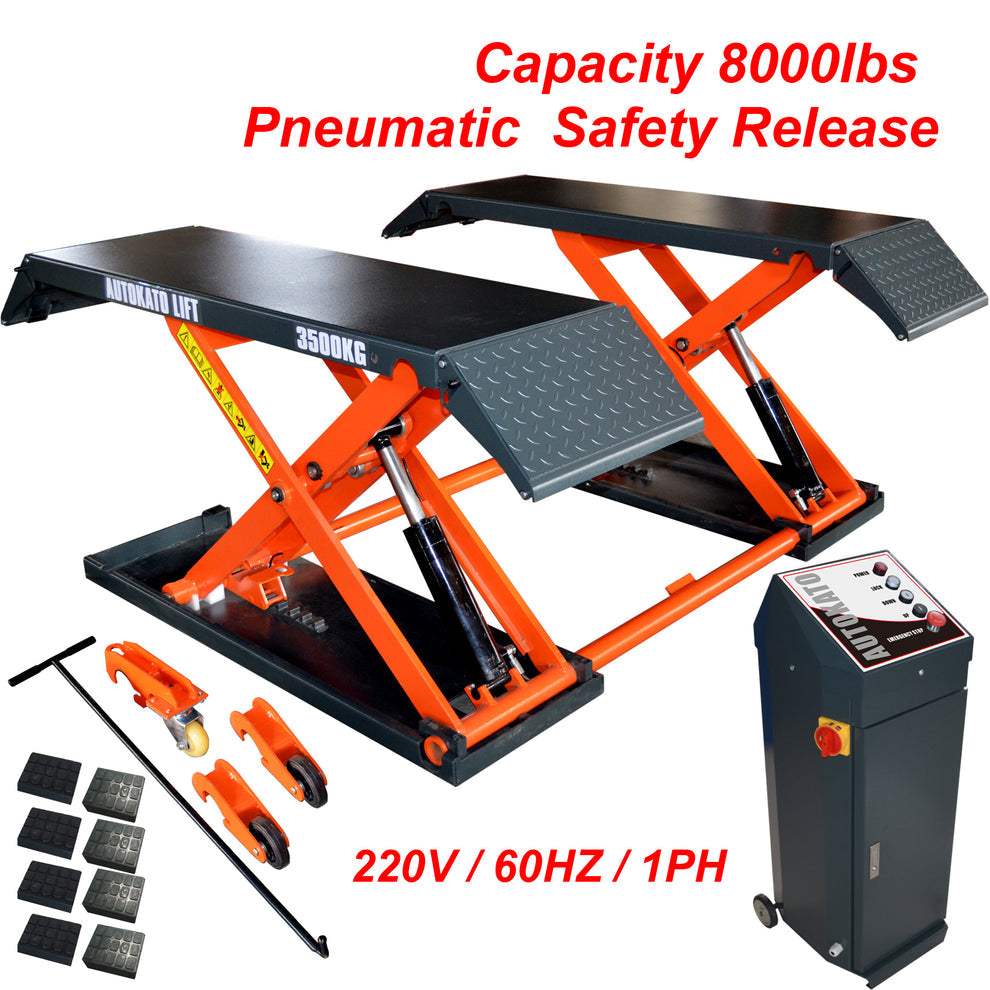

Katool's X80-Pneumatic Mid Rise Scissor Lift Give You Portability and Is Perfect For The Home Mechanic.
- AK-X80 Pneumatic Scissors Lift
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design

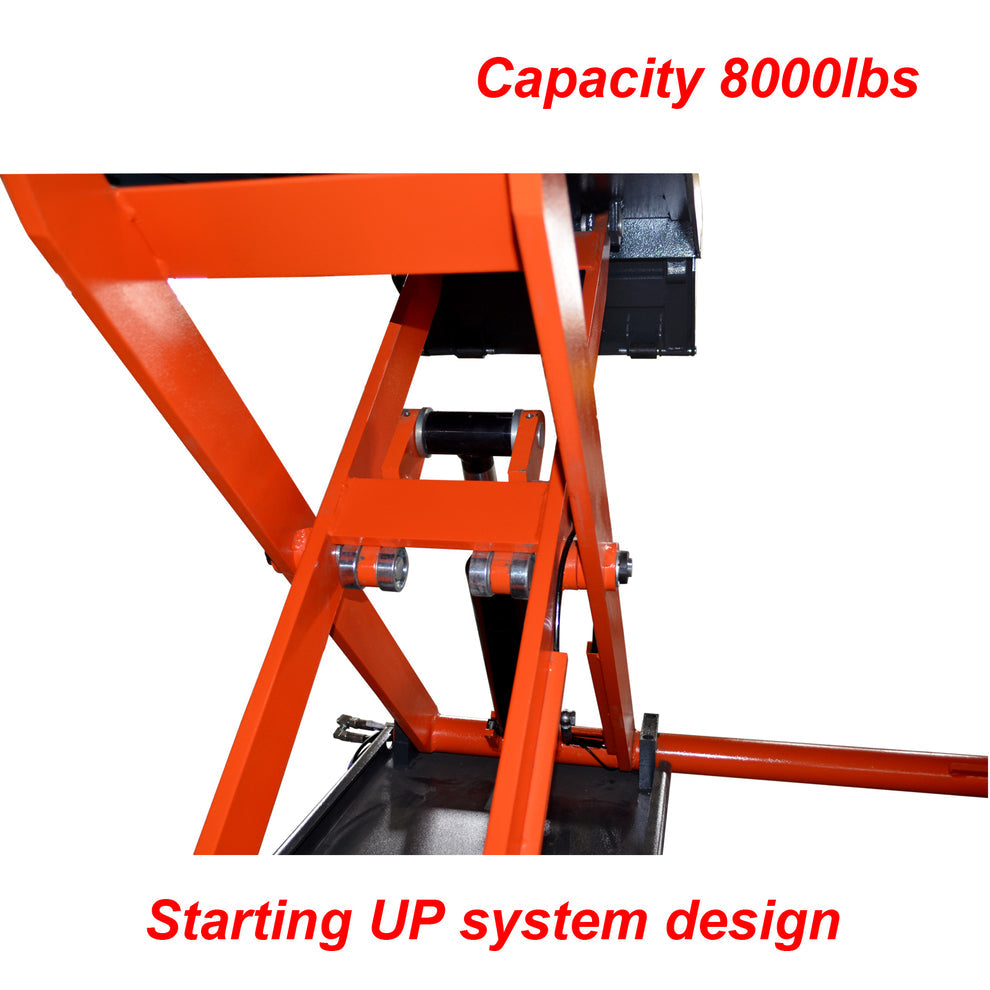

- Starting-up system design
- Pneumatic safety release
- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing

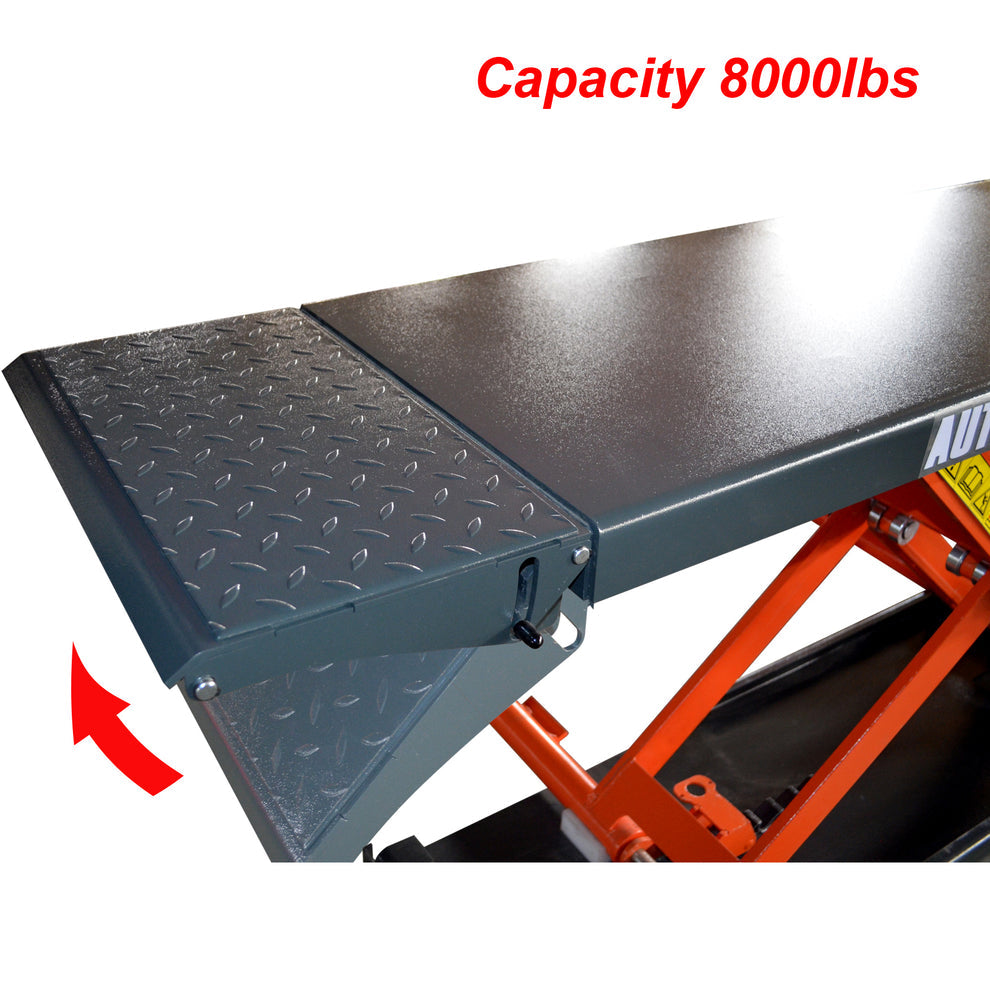

- Drive-up ramps lock design as platform extension for long vehicles
- Portable, mobile kit included making the lift move in your garage easily
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH
- The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

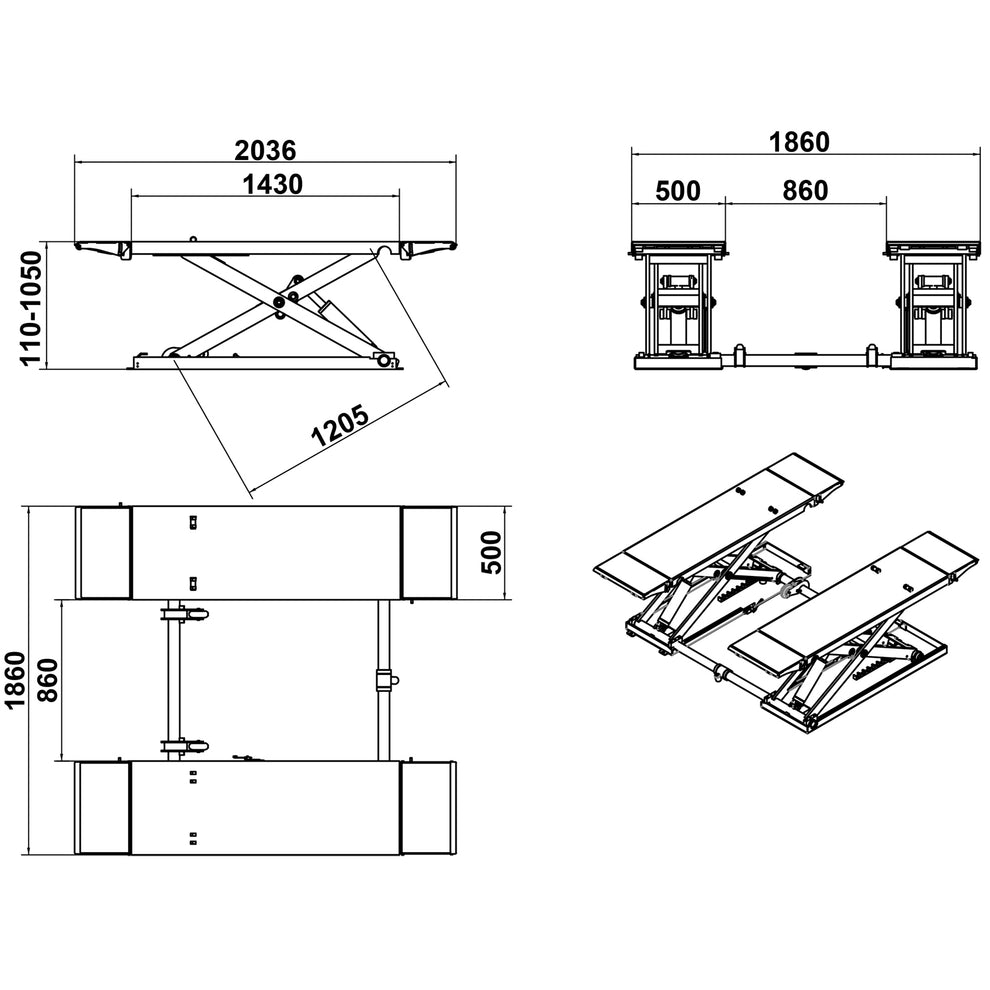

Lifting Capacity | 8000lbs.(3500KG) |
Max. Lifting Height | 41.25"/1050mm |
Min. Height | 4.25"/110mm |
Platform Length | 56.25"/1430mm |
Length Overall | 80"/2036mm |
Platform Width | 19.5"/500mm |
Width Overall | 73.25"/1860mm |
Motor | 110/220VAC/60HZ/1PH |
Net Weight | 1213lbs/550KG |
