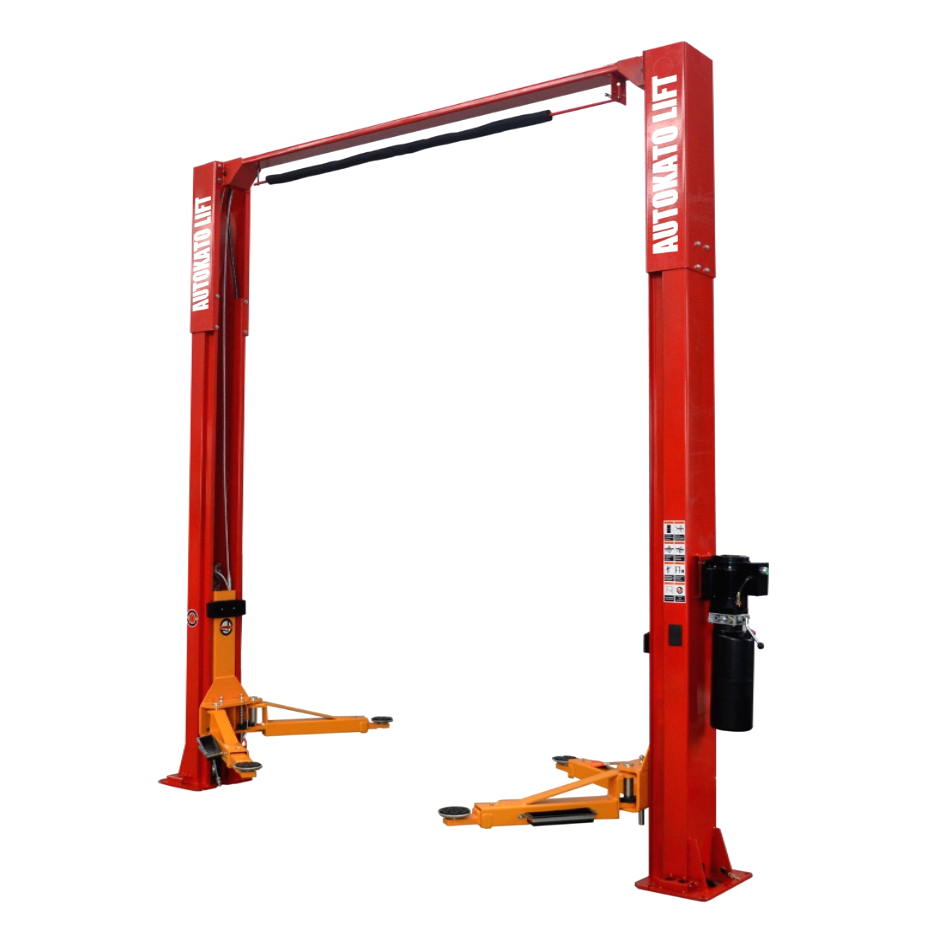

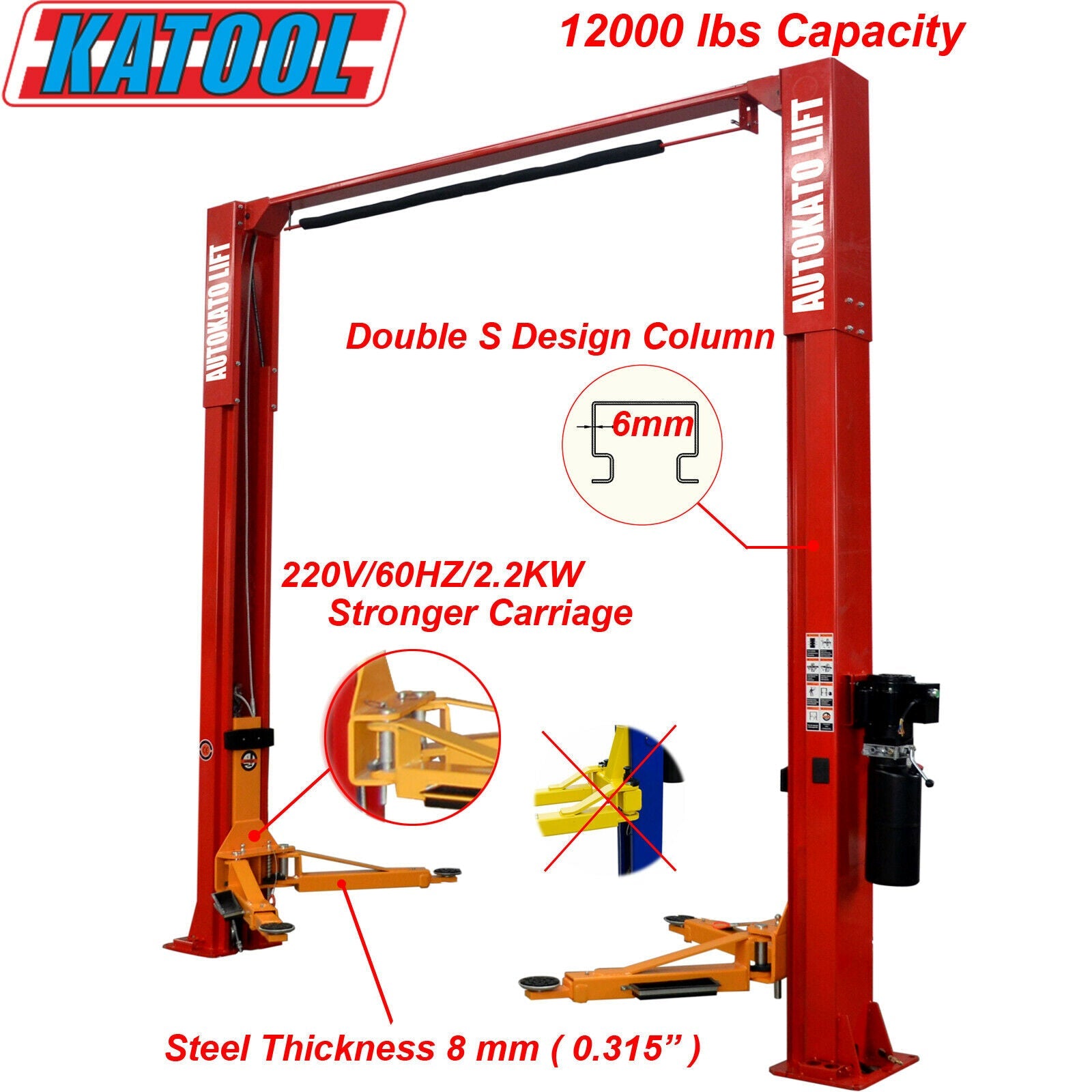

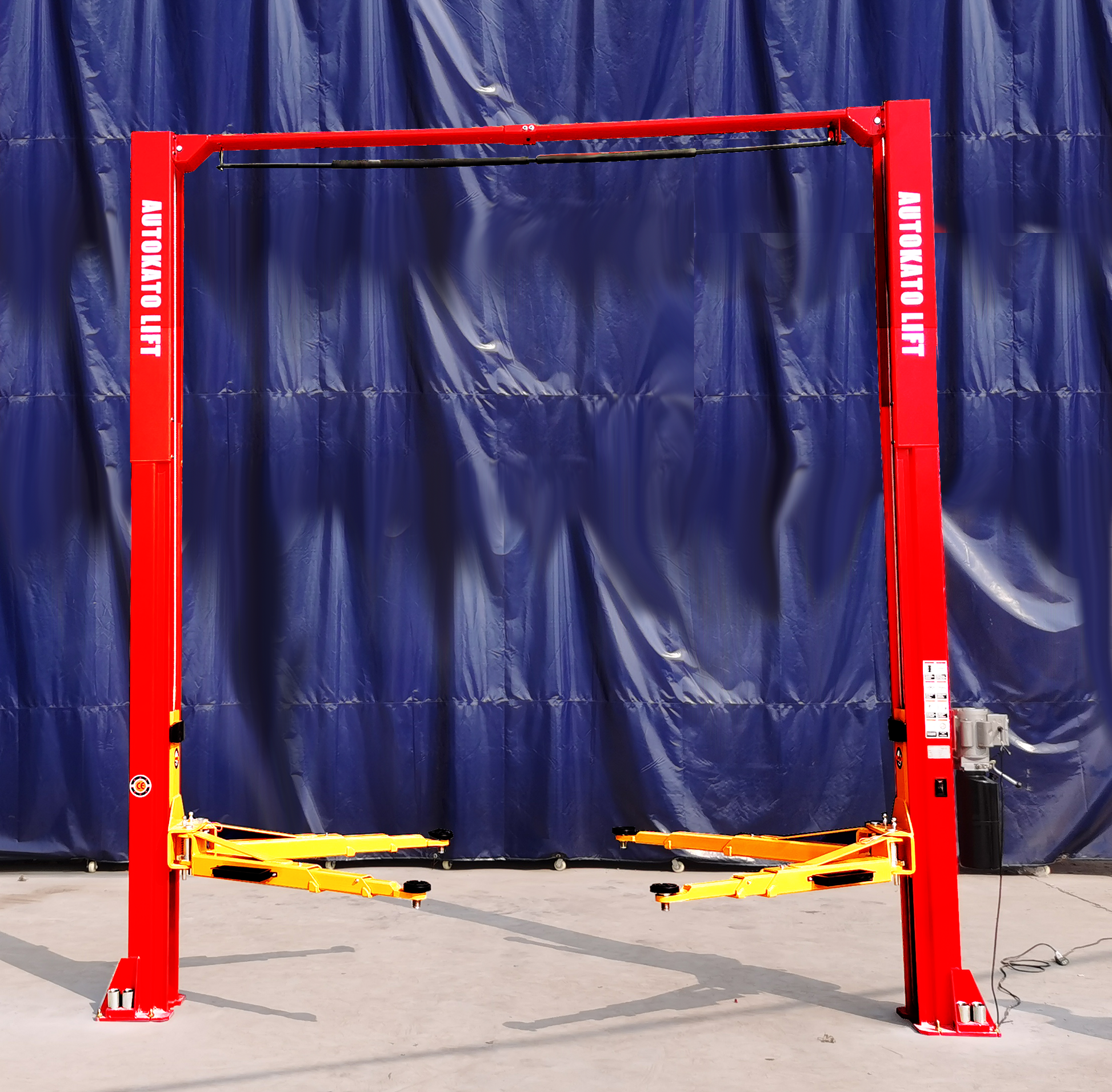

Katool KT-M120 12,000lbs Two Post Clear-floor Vehicle Lift

Katool KT-M120 12,000lbs Two Post Clear-floor Vehicle Lift

Regular price $3,099.00
Regular price Sale price $3,099.00
Sale Sold Out
Shipping calculated at checkout.

Katool KT-M120 12000lbs Vehicle Lift

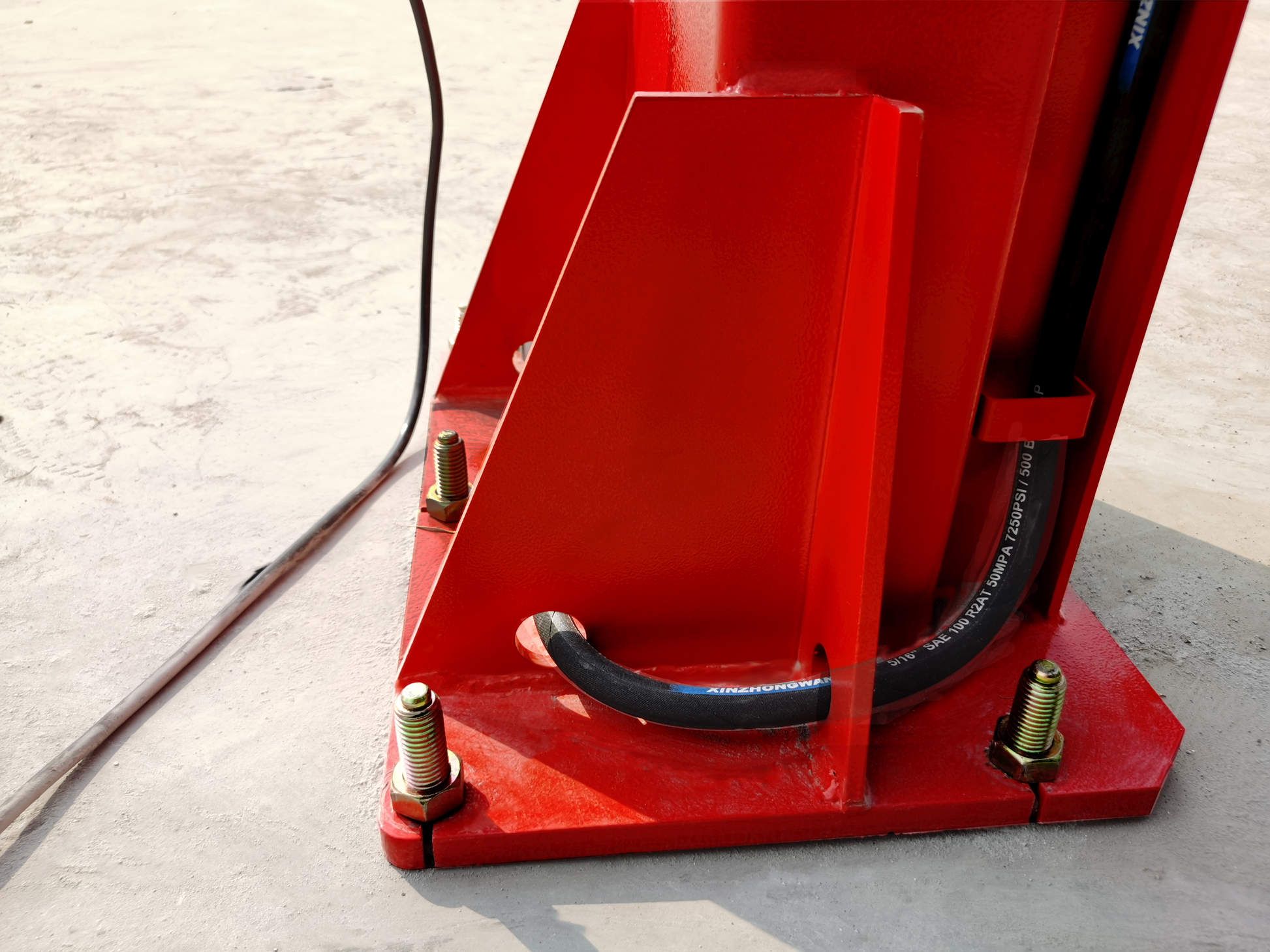

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

  • 12000lbs(5500KG) lifting capacity
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Manual safety release from two sides

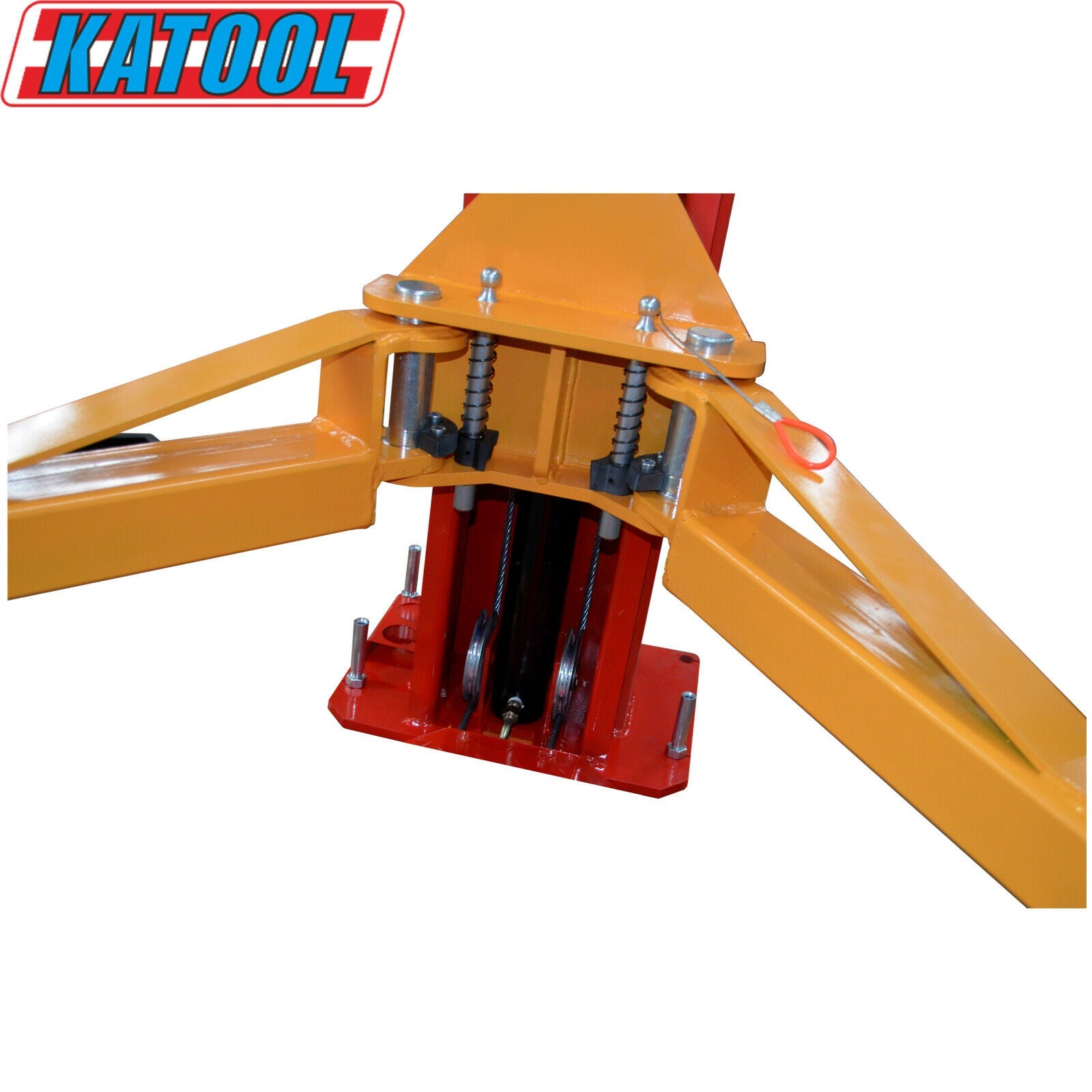

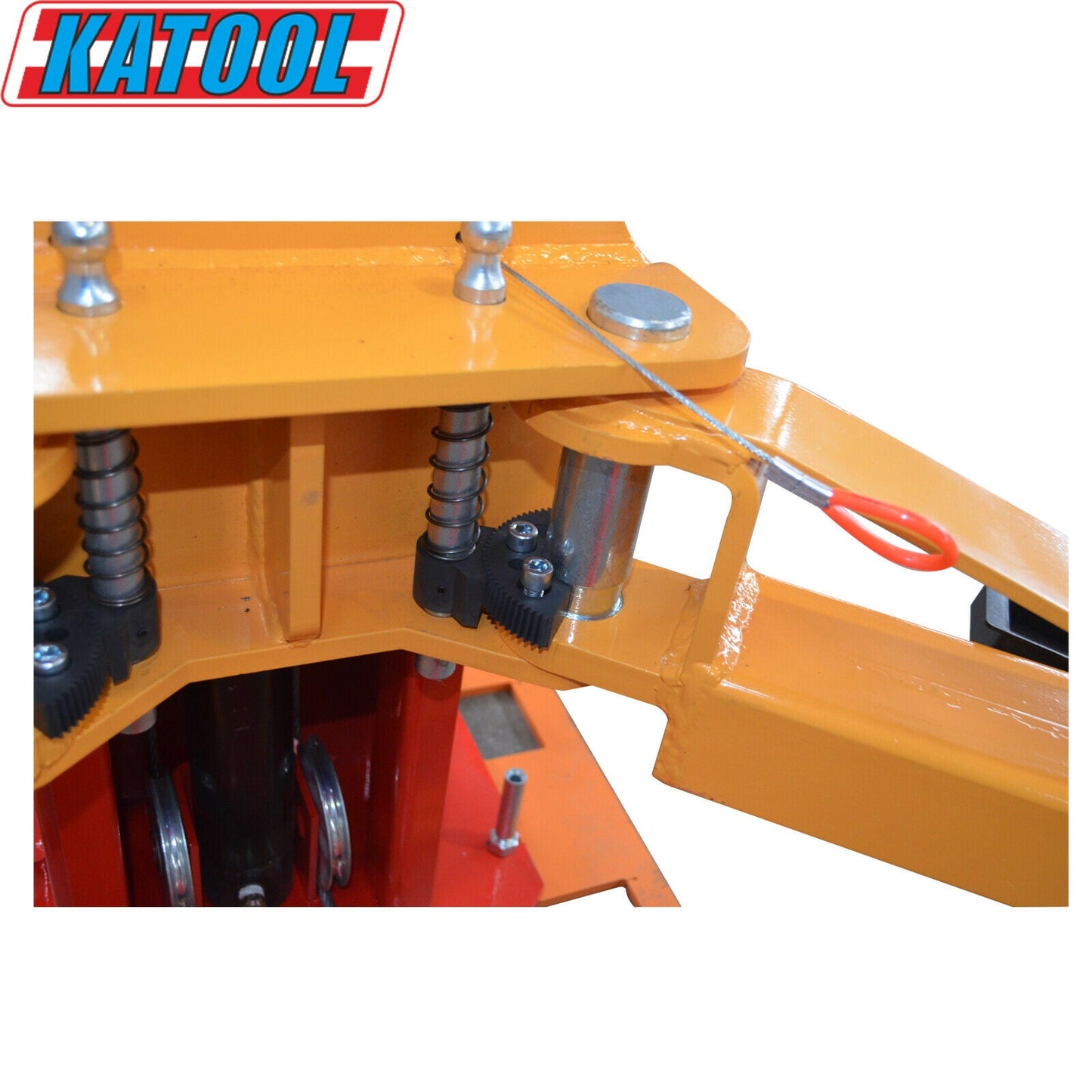

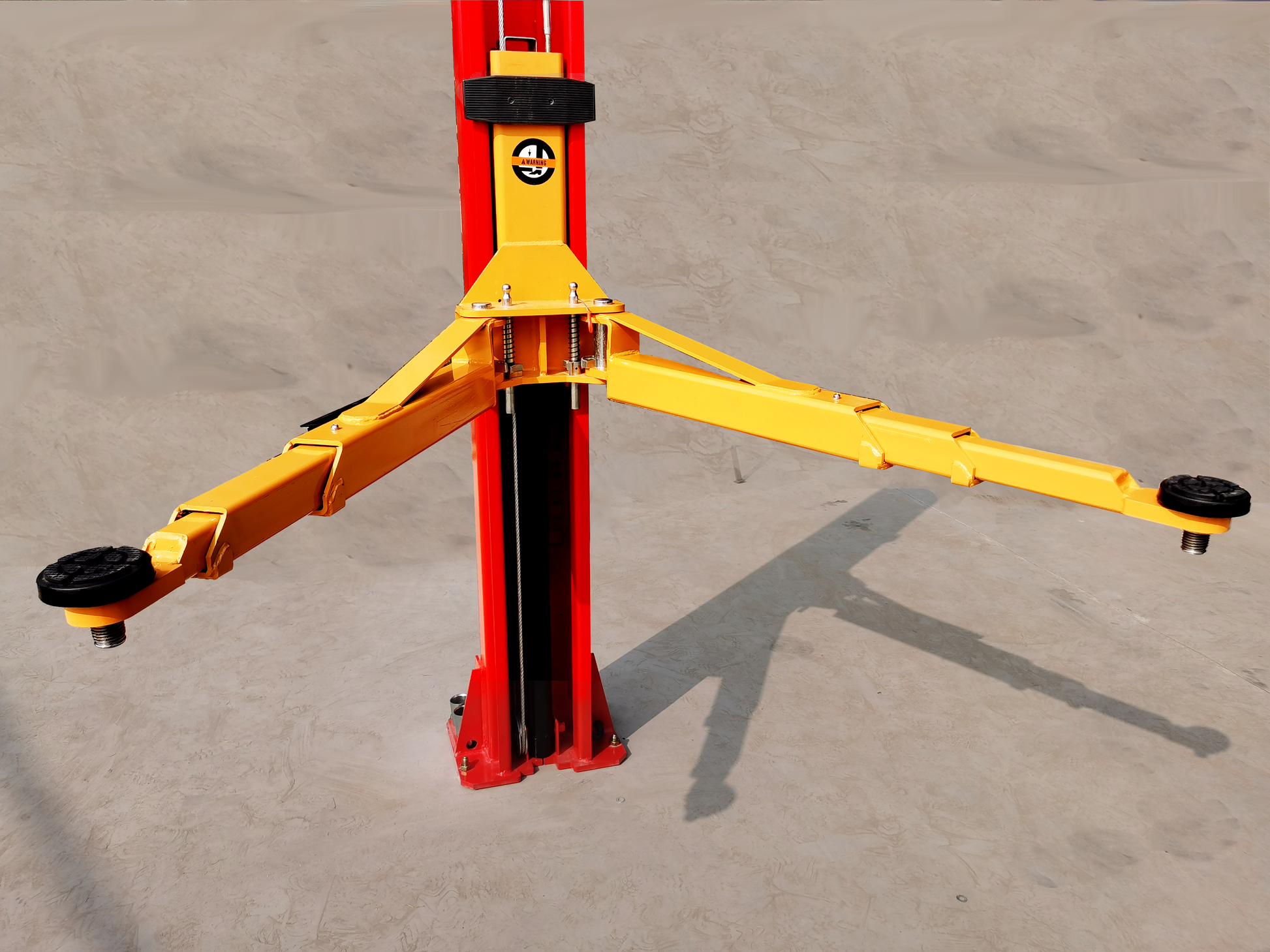

  • Symmetric arms

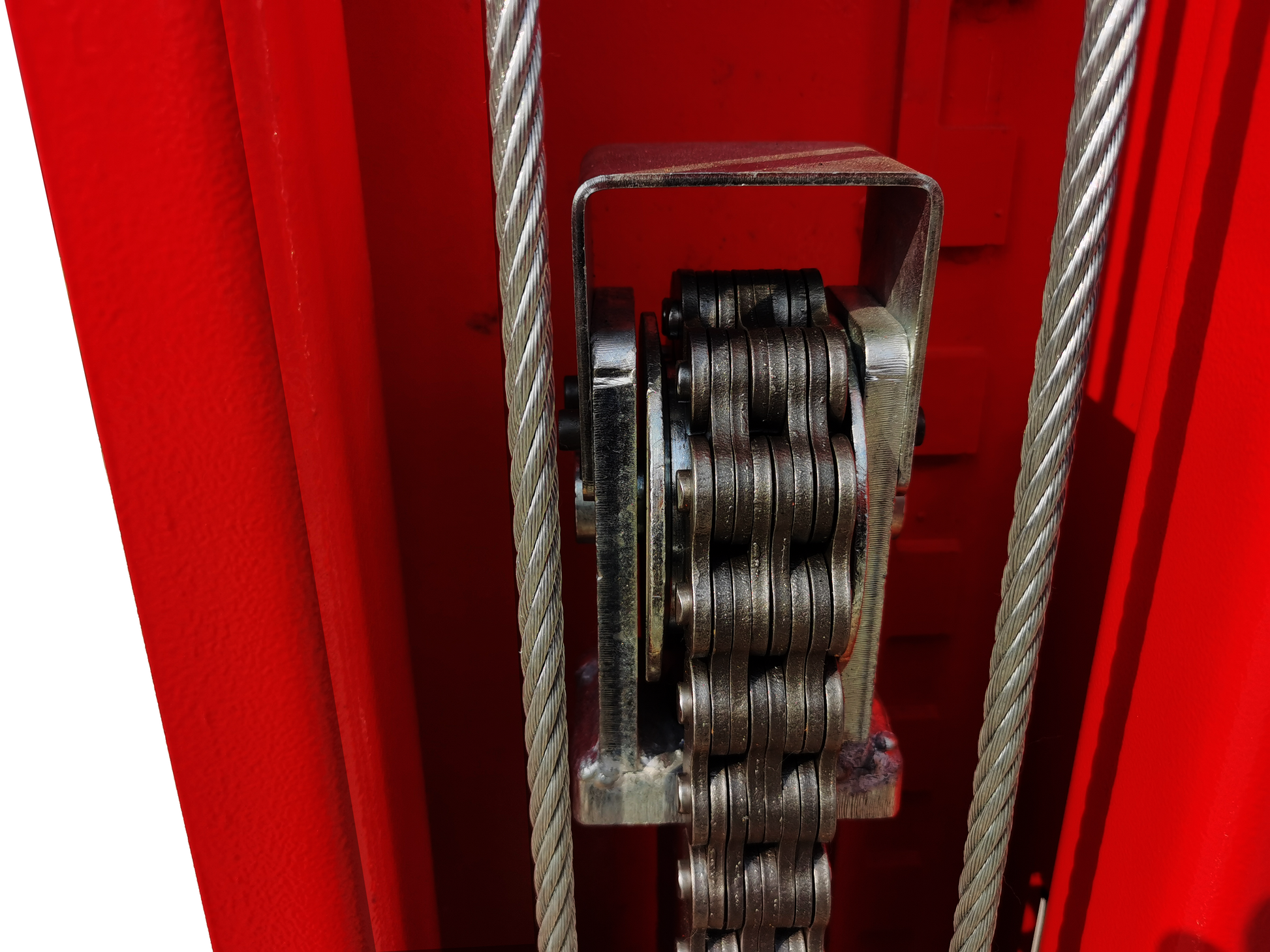

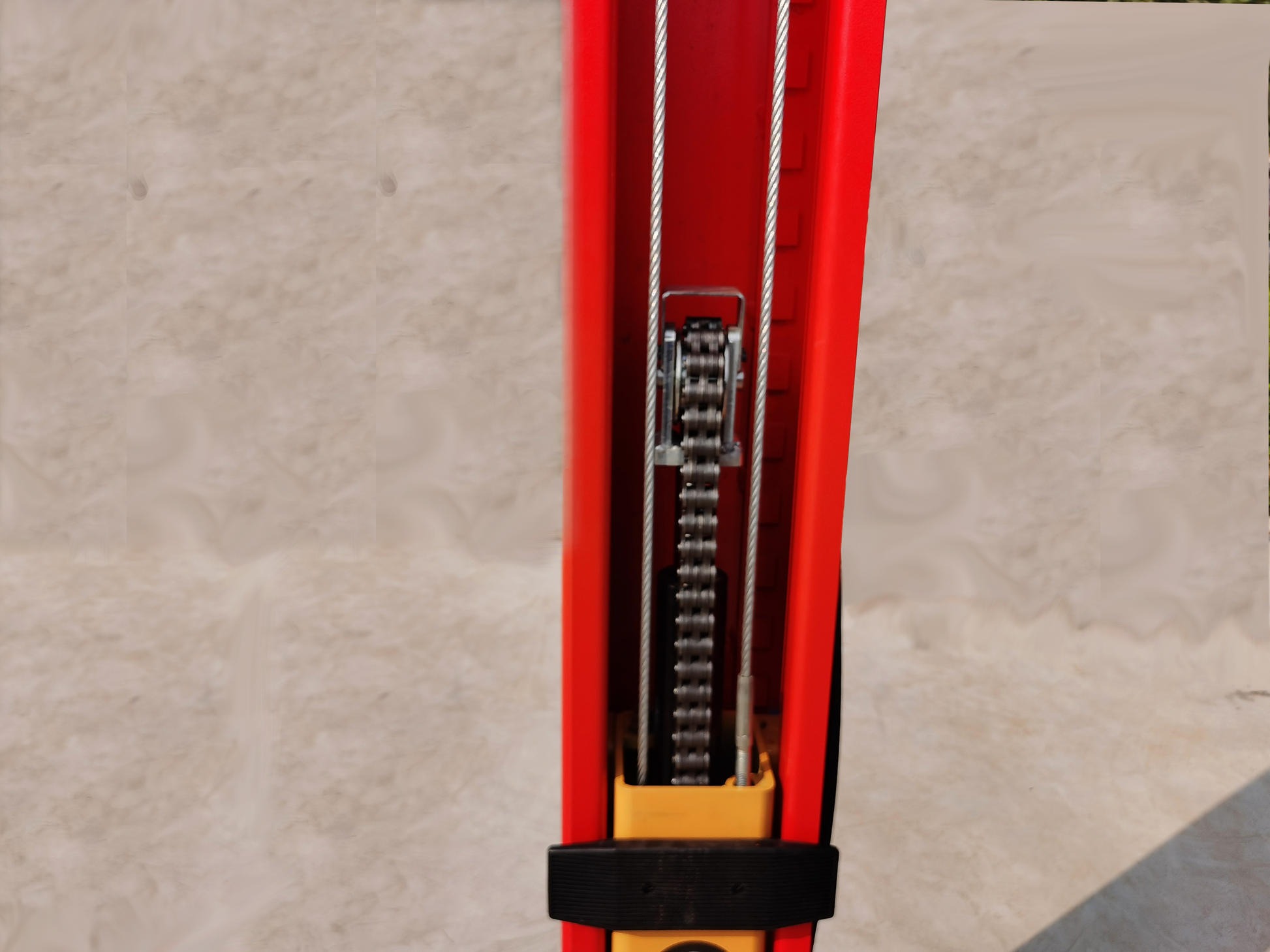

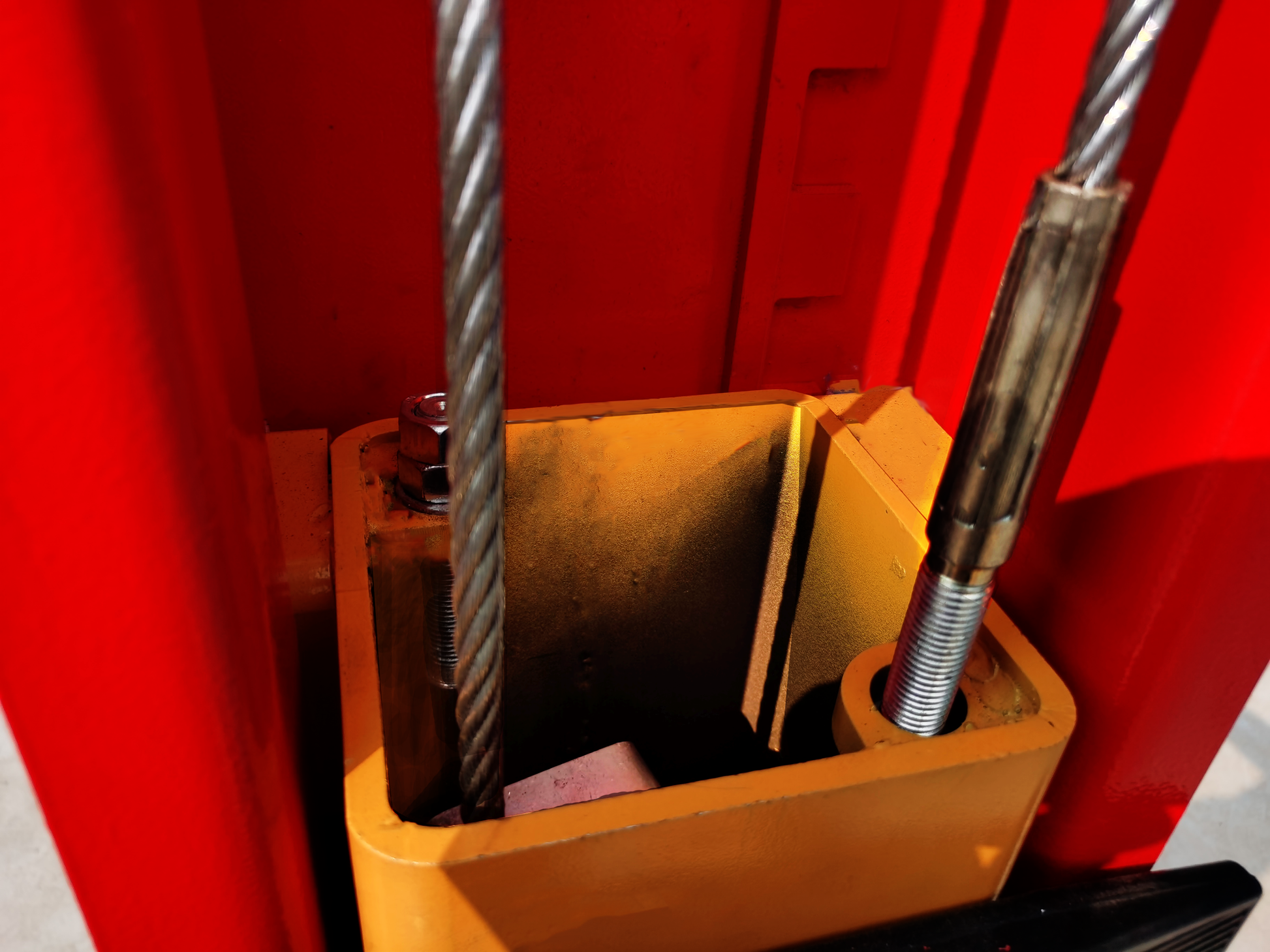

  • Dual Hydraulic Chain-Drive Cylinders

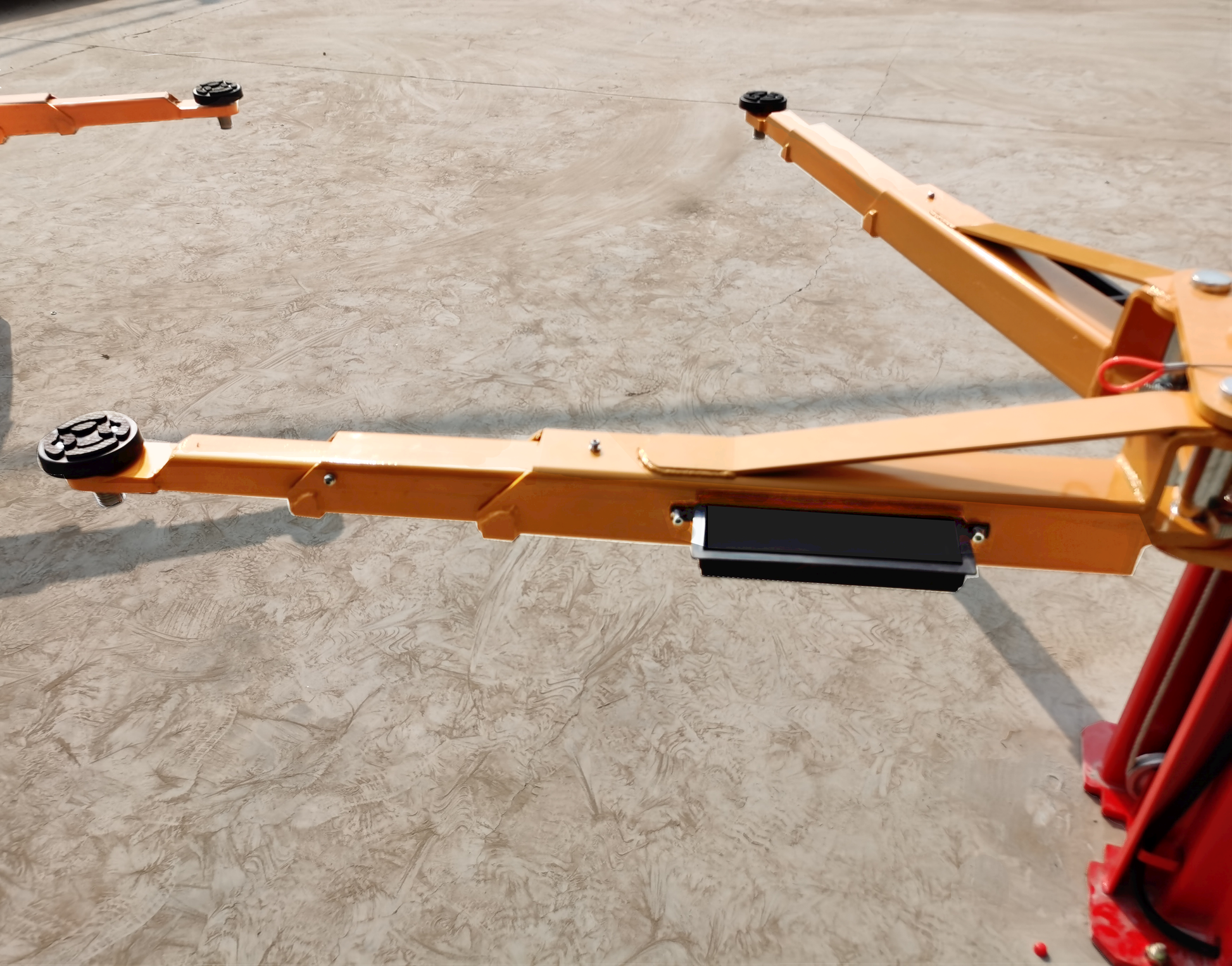

  • Rubber pad door opening protection

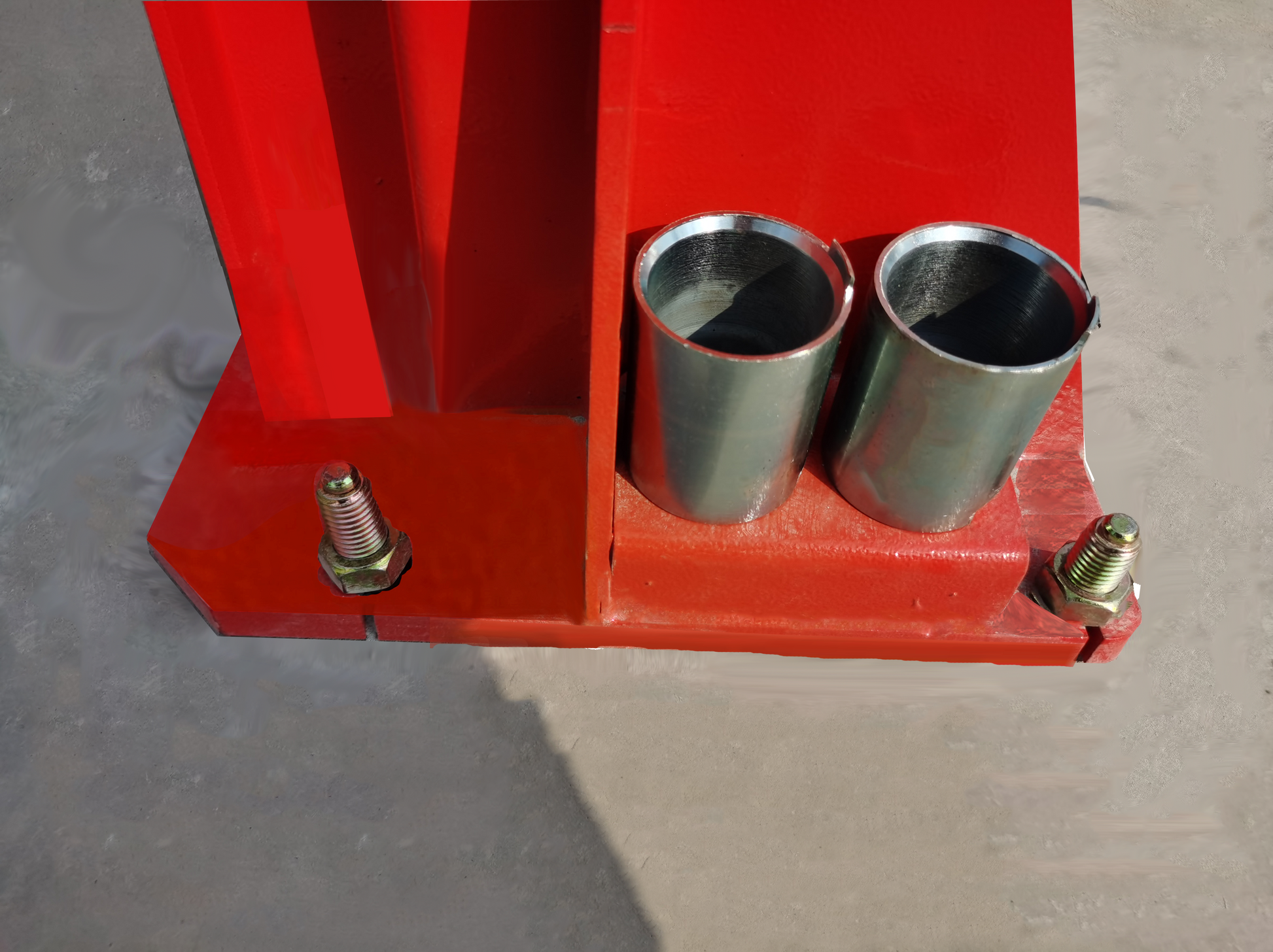

  • Comes with extended support adaptor sets of + 30 mm and + 120 mm
  • Overhead safety shutoff bar
  • Feet-protection safety guardrails with tools box
  • High-quality hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH OPTIONAL ADD-ON PURCHASE $199)

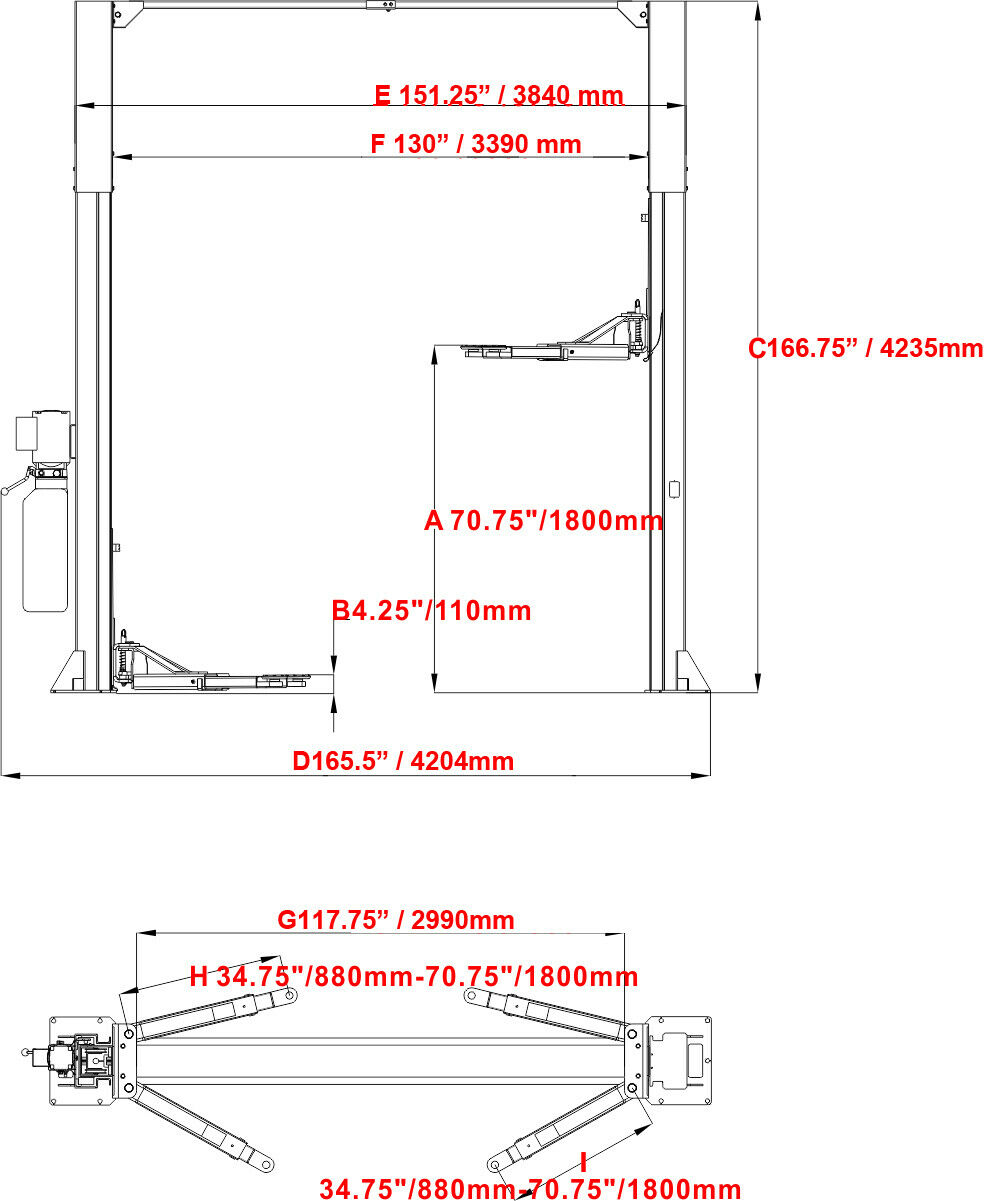

Lifting Capacity 12000 lbs. (5500KG )
Max. Lifting Height 70.75" / 1800mm
Min. Height 4.25" / 110mm
Height Overall 166.75" / 4235mm
Width Overall 165.5" / 4204mm
Outside Columns 151.25" / 3840mm
Inside Columns 130" / 3390mm
Drive Thru Clearance 117.75" / 2990mm
Motor 220VAC/60HZ/1PH
Net Weight 1653lbs/750K
