Katool KT-M110 Two Post Clear-floor Vehicle Lift 11,000lbs
Katool KT-M110 Two Post Clear-floor Vehicle Lift 11,000lbs
Regular price
$2,799.00
Regular price
Sale price
$2,799.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

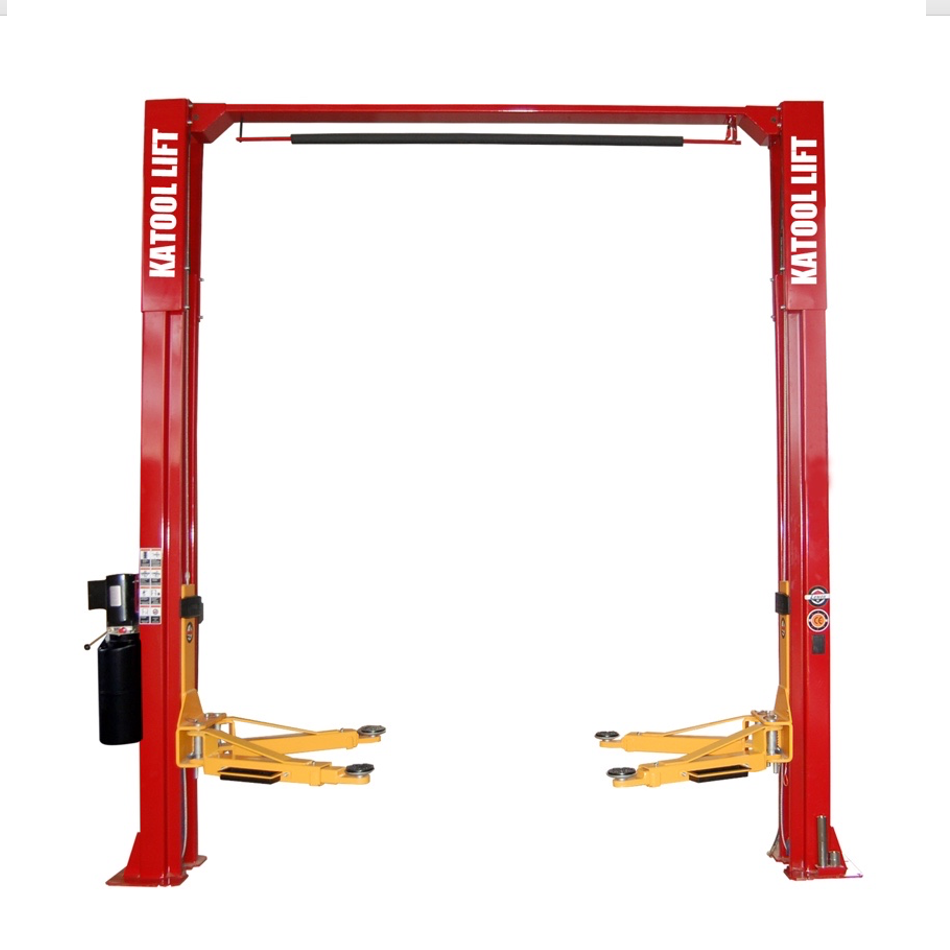

Katool KT-M110 11000lbs Vehicle Lift
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
- 11000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

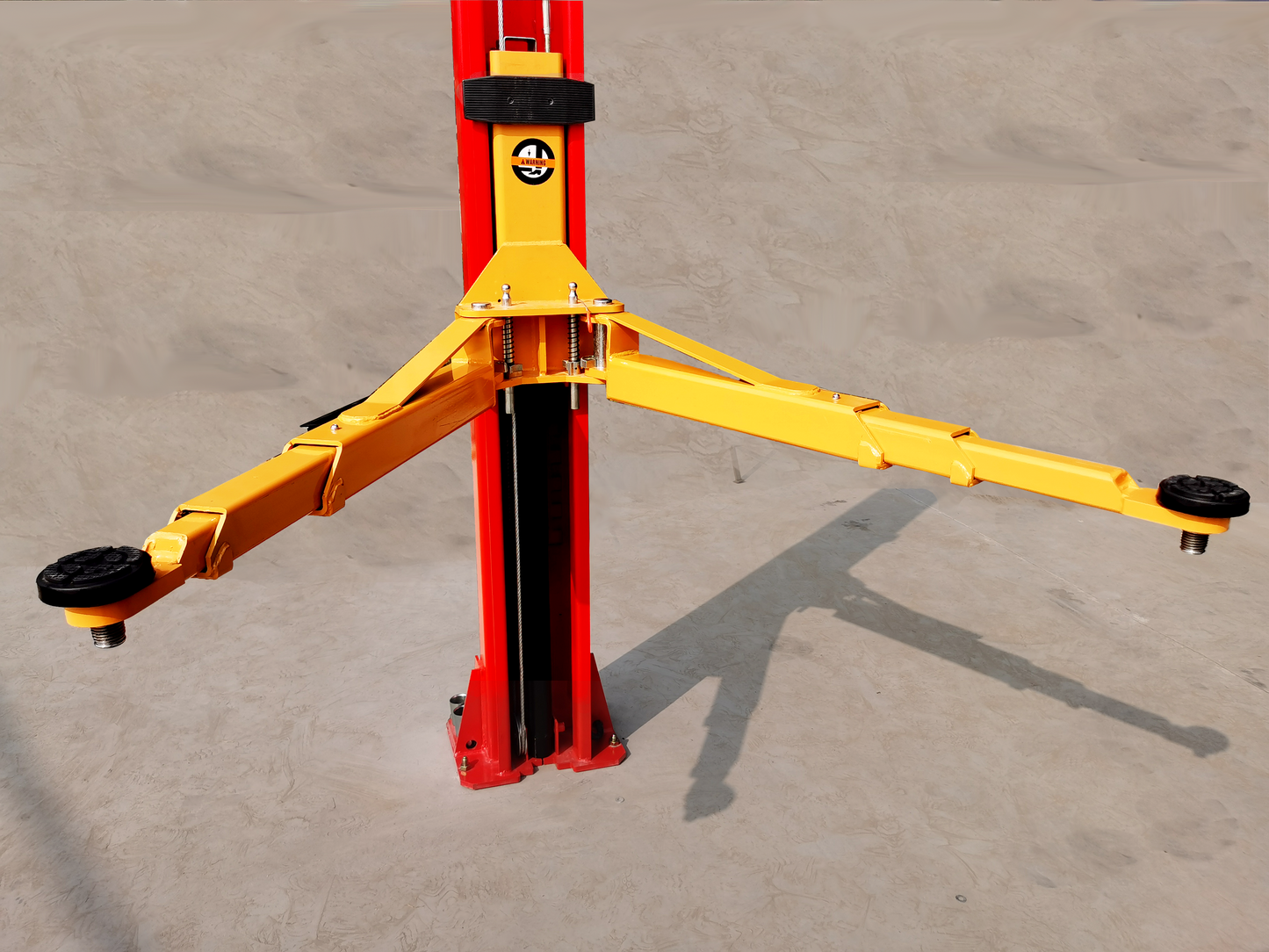

- Symmetric clear-floor design

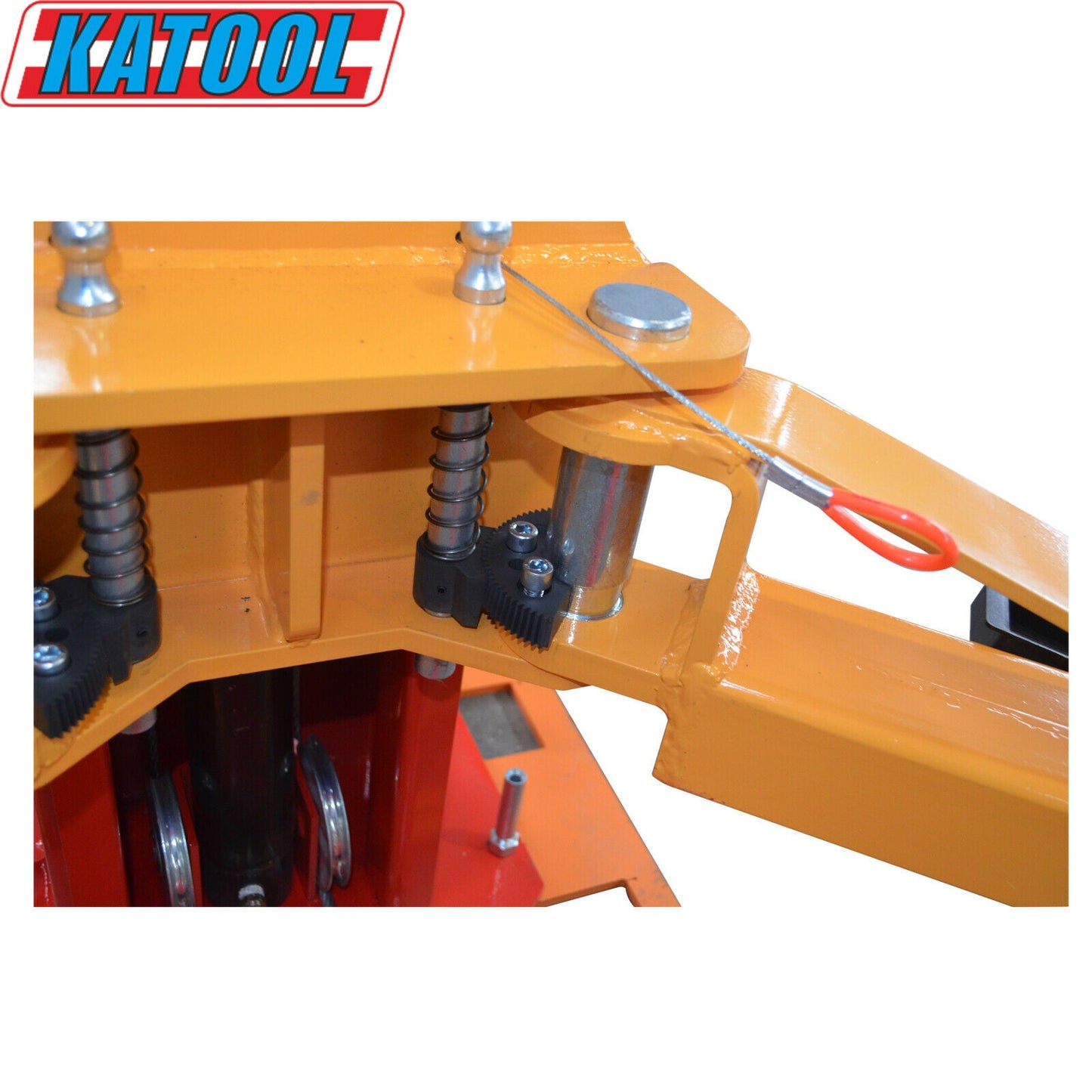

- Manual safety release from two sides

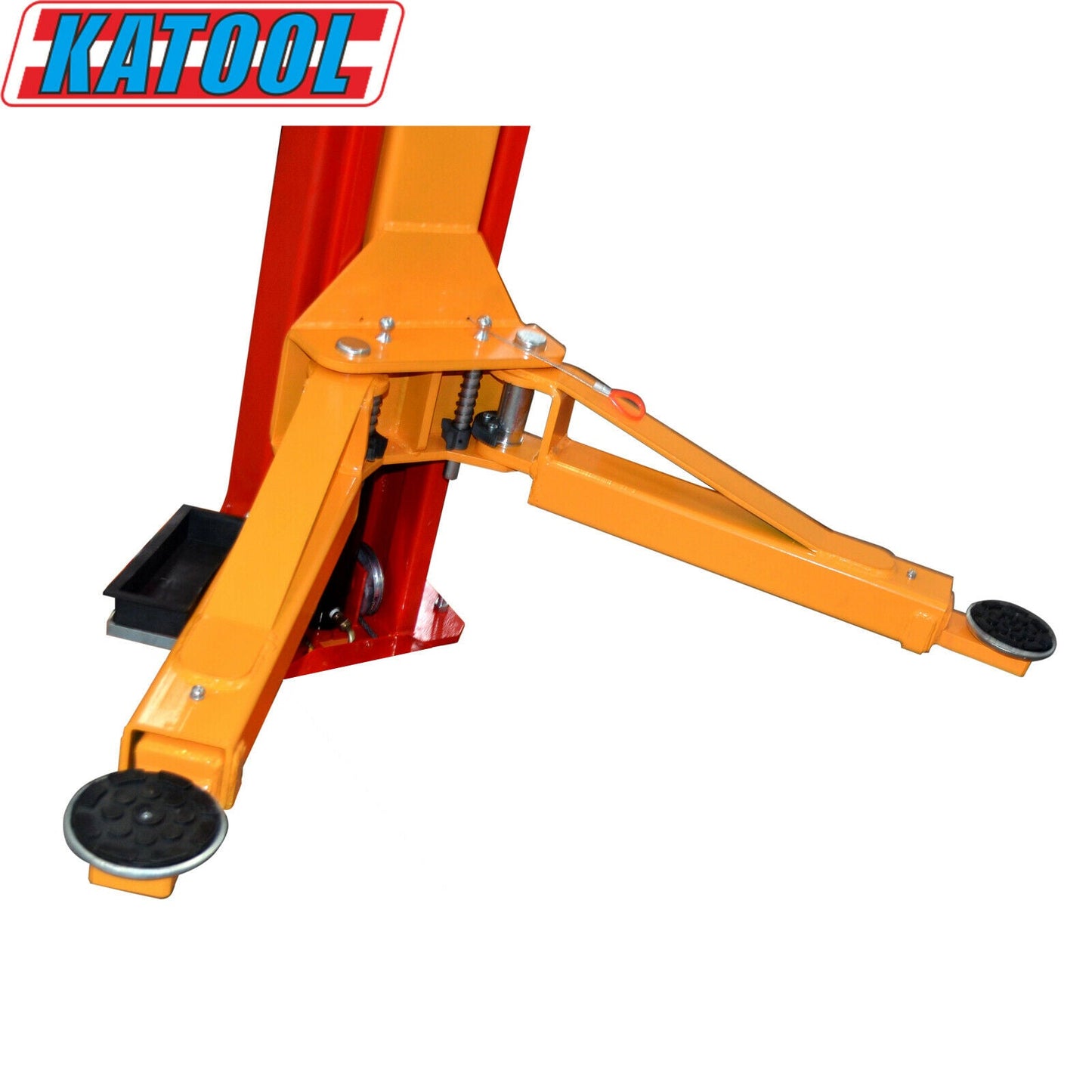

- Symmetric arm

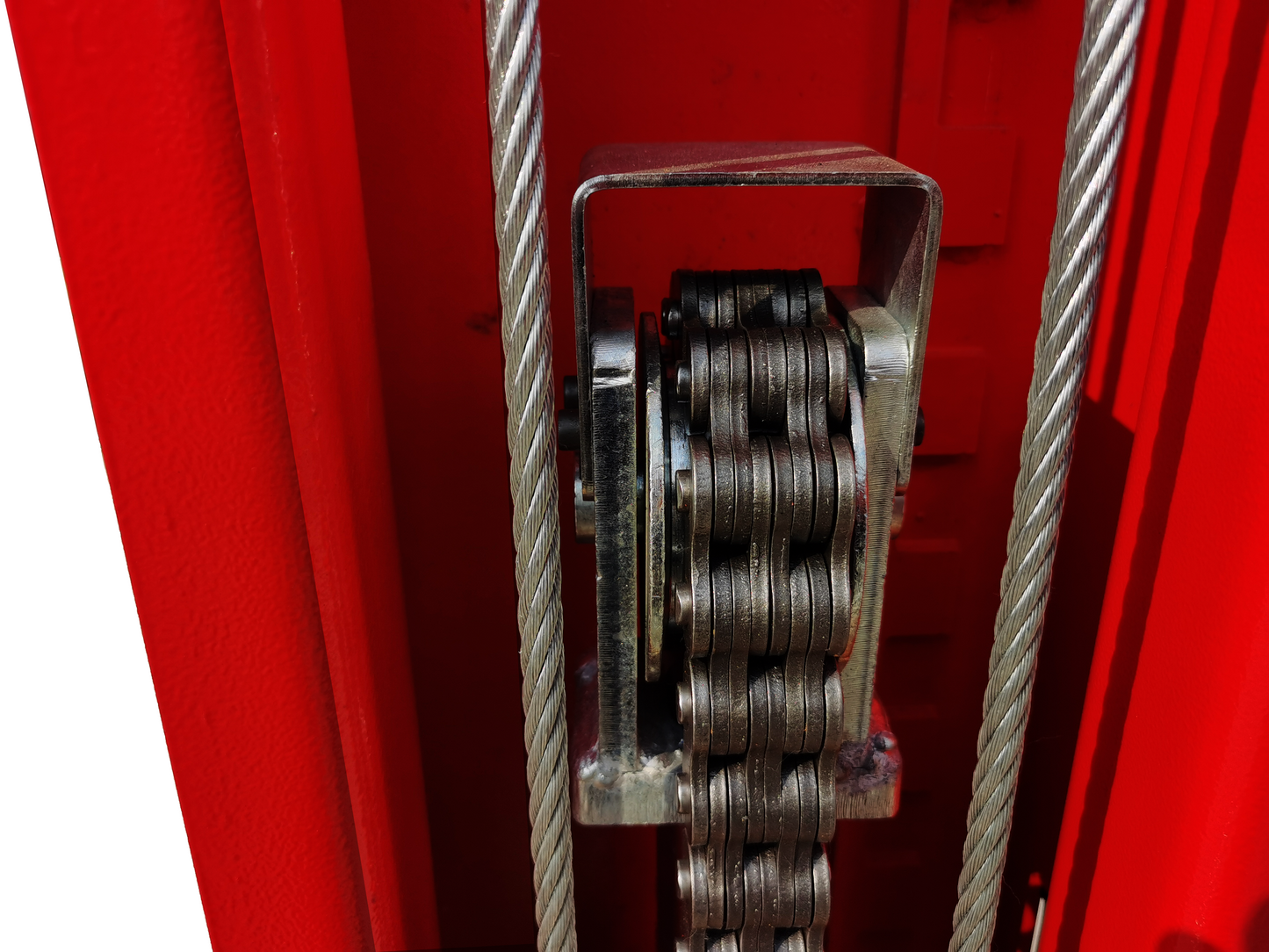

- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection

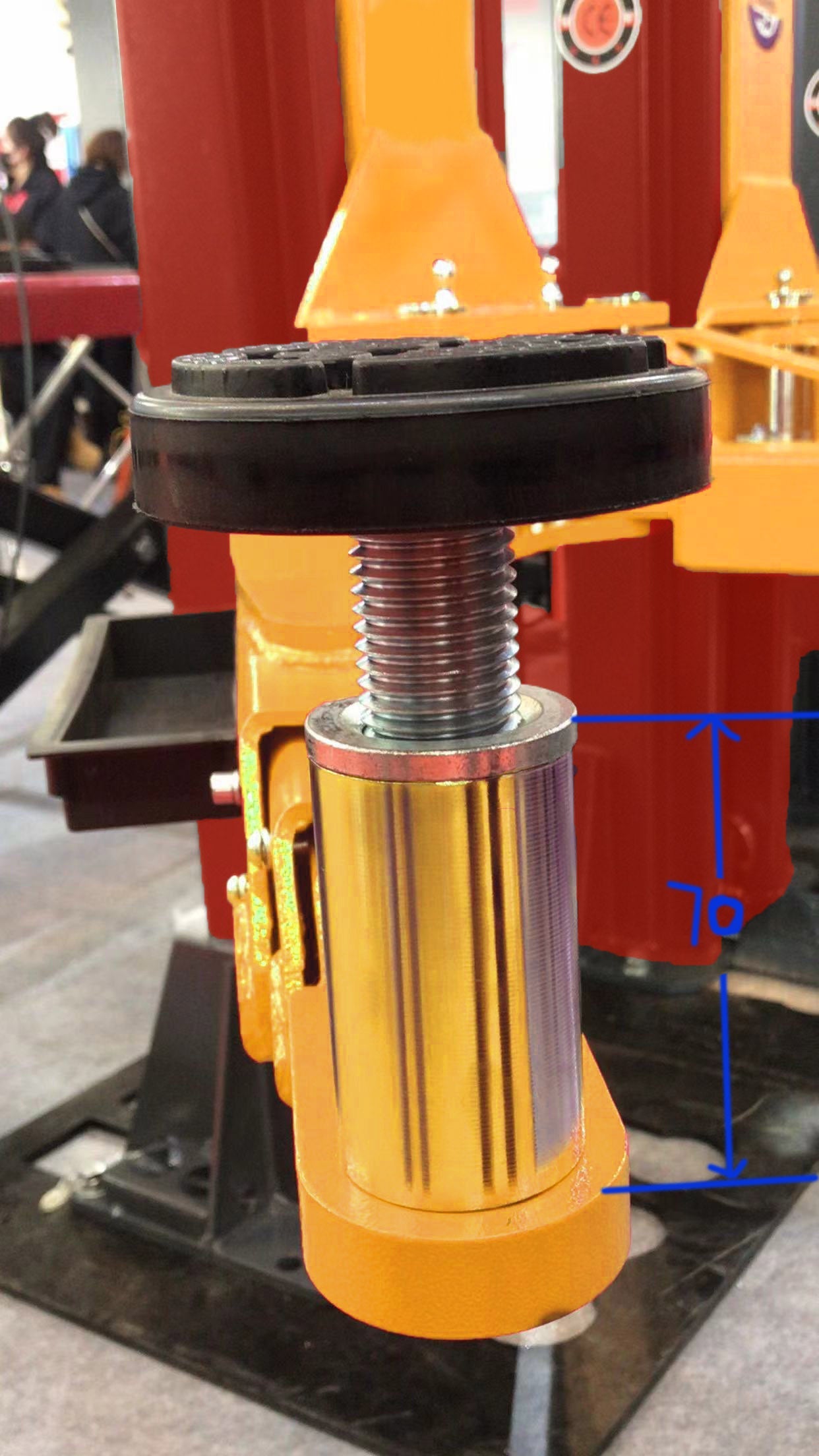

- Comes with extension support adaptor sets of +30mm and +120mm
- Added overhead safety shutoff bar
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH OPTIONAL ADD-ON PURCHASE $199)
Lifting Capacity | 11000lbs.(5000KG) |
Max. Lifting Height | 70.75"/1800mm |
Min. Height | 4.25"/110mm |
Height Overall | 141.25"/3587mm |
Width Overall | 142.25"/3614mm |
Outside Column | 128"/3250mm |
Inside Column | 110.25"/2800mm |
Dirve-Thru Clearance | 94.5"/2400mm |
Front Arm Reach (Min) | 30.75"/780mm (2 stages) |
Front Arm Reach (Max) | 50.5"/1280mm (2 stages) |
Rear Arm Reach (Min) | 30.75"/780mm (2 stages) |
Rear Arm Reach (Max) | 50.5"/1280mm (2 stages) |
Motor | 220VAC/60HZ/1PH/2.2KW |
Net Weight | 1367lbs/620KG |
